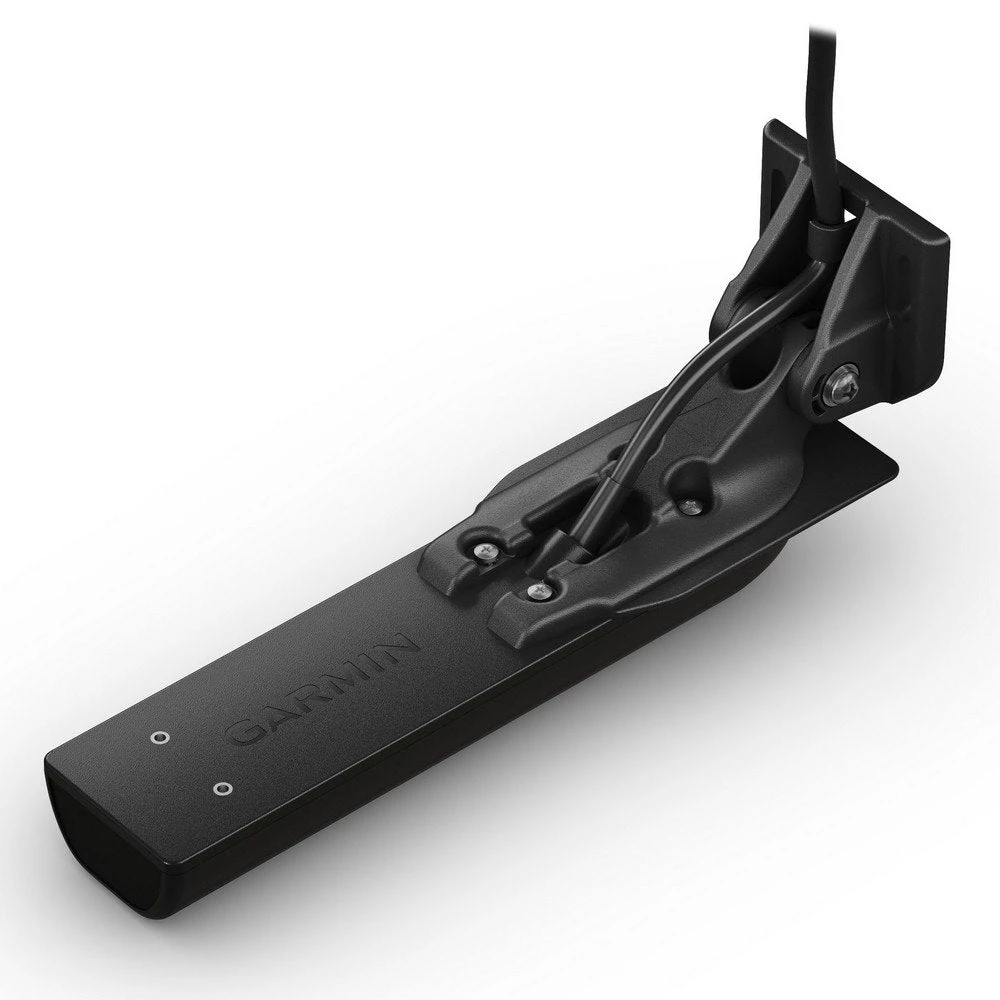

MARINE ELECTRONICS Garmin GT56UHD-TM

This all-in-one transducer offers ultimate versatility, featuring Ultra High-Definition ClearVü and SideVü scanning sonars, high wide CHIRP traditional sonar and more, so you can spend more time catching fish.

Product Description:



See everything below and around your boat with Ultra High-Definition scanning sonar.

High wide CHIRP traditional sonar delivers target separation like no other.

Multiple sonar frequencies have you covered — no matter what depth you’re fishing.

See targets and structure in bright, vivid colour.

Mount this transducer your way — transom or trolling motor.



FREQUENCY	Traditional High-wide CHIRP (150-240 kHz); ClearVü/SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100)
POWER	Traditional 350 W; ClearVü/SideVü 500 W
BEAMWIDTH	Traditional CHIRP: 24-16; ClearVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz; SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz
MAXIMUM DEPTH	Traditional: 800 ft freshwater; ClearVü: 400 ft; SideVü: 500 ft
DEPTH/SPEED/ TEMPERATURE	Depth and temperature
NUMBER OF PINS	12
CABLE LENGTH	25 ft
SUPPORTED DEADRISE/TRANSOM ANGLES	0°-70° degree transom
